Product Summary

The PSOT36C-LF is a standard capacitance TVS array.

Parametrics

PSOT36C-LF absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs): 500Watts; (2)Operating Temperature: -55 to 150℃; (3)Storage Temperature: -55 to 150℃; (4)Forward Voltage @ 100mA, 300μs - Square Wave: 1.5Volts; (5)maximum leakage current: 1μA.

Features

PSOT36C-LF features: (1)ESD Protection > 40 kilovolts; (2)500 Watts Peak Pulse Power per Line (tp = 8/20μs); (3)Low Clamping Voltage; (4)Available in Multiple Voltage Types Ranging from 3V to 36V; (5)Unidirectional & Bidirectional Configurations; (6)RoHS Compliant.


Diagrams

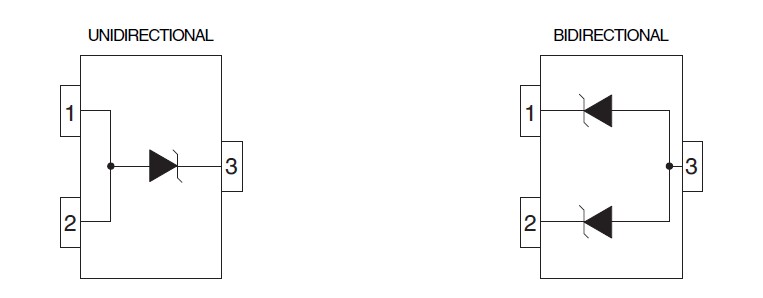

PSOT36C-LF pin connection
