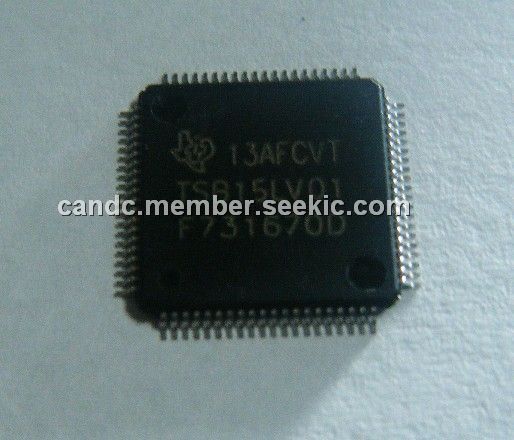

Product Summary
The TSB15LV01PFC is a video signal processor integrated with a 1394 link layer controller. It is designed to be the center of a host-controlled, full-motion color camera when coupled with a 1394 PHY, CCD sensor and driver, analog front end, and an external EEPROM device. A camera based on the TSB15LV01PFC is compliant with the IEEE 1394a standard and the 1394 Trade Associations Digital Camera specification, Draft 1.04. The TSB15LV01PFC offers the advantage of 24-bit true-color digital video processing. This gives superior video quality at higher sustained data rates. Isochronous transfer of the video data and asynchronous control of the camera are accomplished via the 1394 high-speed serial bus, operating at data rates of up to 400 Mbits/s. This bus allows noncompressed full-motion digital video at rates of 30 frames/sec. Use of this serial connection eliminates the need for expensive video capture cards.
Parametrics
TSB15LV01PFC absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 4 V; (2)Input voltage range, VI: –0.5 V to VCC + 0.5 V; (3)Output voltage range, VO: –0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0 or VI > VCC: ±20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC: ±20 mA; (6)Operating free-air temperature range: 0℃ to 70℃; (7)Storage temperature range: –65℃ to 150℃; (8)Virtual junction temperature, TJ: 150℃.
Features
TSB15LV01PFC features: (1)Compatible With 1394 Trade Associations Digital Camera Specification, Draft 1.04; (2)1394a Link Layer Controller With 400 Mbits/s Capability; (3)Support for Several CCD Sensors; (4)Integrated CCD (Charge-Coupled Device)and CDS (Correlated Double Sampling)Pulse Timer With Programmable Pulse Skew; (5)Video Controls; (6)Three Stepper Motor Controls for Focus/Zoom/Tilt or Other Motorized Functions; (7)EEPROM Interface; (8)Programmable Status/Test Terminals; (9)Seamlessly Connects to TIs 1394 Physical Layer Devices.

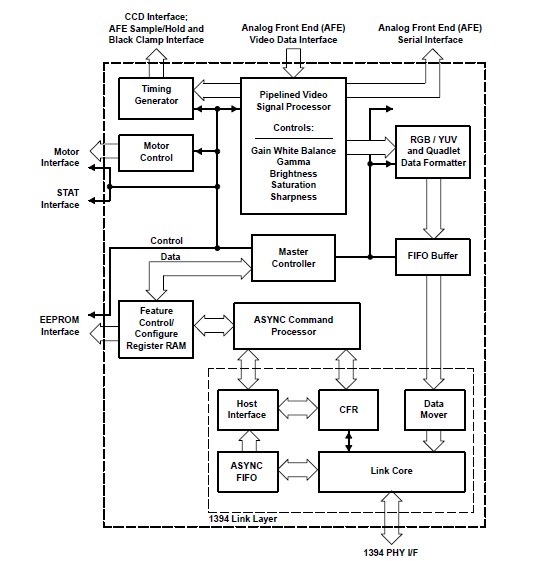

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TSB15LV01PFC |
Texas Instruments |
1394 Interface IC CAMERALYNX-Hi Perf 1394 |
Data Sheet |
|
|
||||||||||||
|
TSB15LV01PFCG4 |
Texas Instruments |
1394 Interface IC CAMERALYNX-Hi perf 1394 3.3V Cam ASIC |
Data Sheet |
|
|
||||||||||||
