Product Summary

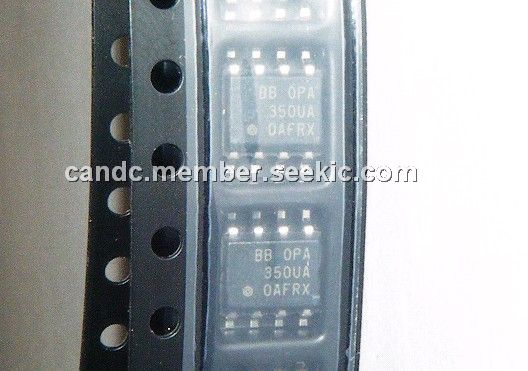

The OPA350UA is a rail-to-rail CMOS operational amplifier. The OPA350UA is optimized for low voltage, single-supply operation. Rail-to-rail input/output, low noise, and high speed operation (38MHz, 22V/ms) make them ideal for driving sampling analog-to-digital converters. They are also well suited for cell phone PA control loops and video processing as well as audio and general purpose applications. Single, dual, and quad versions have identical specifications for maximum design flexibility. The OPA350UA series operates on a single supply as low as 2.5V with an input common-mode voltage range that extends 300mV below ground and 300mV above the positive supply. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.
Parametrics
OPA350UA absolute maximum ratings: (1)Supply Voltage: 5.5V; (2)Signal Input Terminals, Voltage: (V–)– 0.3V to (V+)+ 0.3V; (3)Current: 10mA; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.
Features
OPA350UA features: (1)rail-to-raiinput; (2)rail-to-raioutput (within 10mV); (3)wide bandwidth: 38MHz; (4)high slew rate: 22V/ms; (5)low noise: 5nV/Hz; (6)low thd+noise: 0.0006%; (7)unity-gain stable; (8)microsize packages; (9)single, dual, and quad.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA350UA |
Texas Instruments |
High Speed Operational Amplifiers Hi-Spd Single-Sply Rail-to-Rail |
Data Sheet |
|
|
||||||||||||
|
OPA350UA/2K5 |
Texas Instruments |
High Speed Operational Amplifiers Hi-Spd Single-Sply Rail-to-Rail |
Data Sheet |
|
|
||||||||||||
|
OPA350UAG4 |
Texas Instruments |
High Speed Operational Amplifiers Hi-Spd Single-Sply Rail-to-Rail |
Data Sheet |
|
|
||||||||||||
|
OPA350UA/2K5G4 |
Texas Instruments |
High Speed Operational Amplifiers Hi-Spd Single-Sply Rail-to-Rail |
Data Sheet |
|
|
||||||||||||
