Product Summary

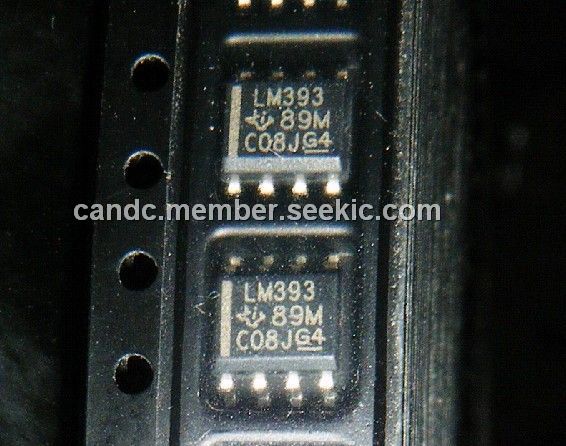

The LM393A is a dual differential comparator. The LM393A consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs of the LM393A can be connected to other open-collector outputs to achieve wired-AND relationships.
Parametrics
LM393A absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): −0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited; (7)Operating virtual junction temperature, TJ: 150℃; (8)Case temperature for 60 seconds: FK package: 260℃; (9)Lead temperature 1,6 mm (1/16 inch)from case for 60 seconds: JG package: 300℃; (10)Storage temperature range, Tstg: −65℃ to 150℃.
Features
LM393A features: (1)Single Supply or Dual Supplies; (2)Wide Range of Supply Voltage Max Rating 2 V to 36 V, Tested to 30 V . Non-V Devices, Tested to 32 V V-Suffix Devices; (3)Low Supply-Current Drain Independent of Supply Voltage . 0.4 mA Typ Per Comparator; (4)Low Input Bias Current 25 nA Typ; (5)Low Input Offset Current 3 nA Typ (LM193); (6)Low Input Offset Voltage 2 mV Typ; (7)Common-Mode Input Voltage Range Includes Ground; (8)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage ±36 V; (9)Low Output Saturation Voltage; (10)Output Compatible With TTL, MOS, and CMOS.

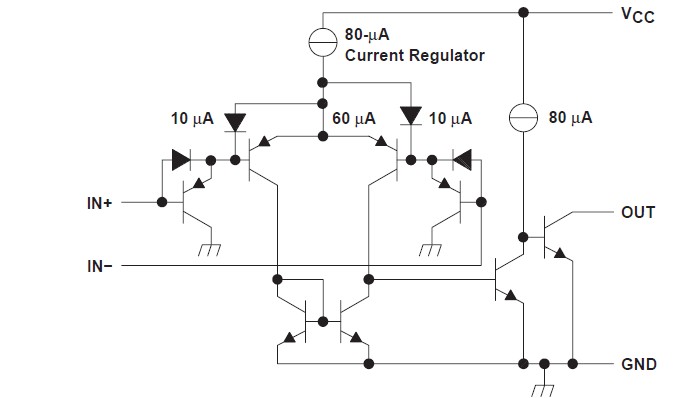

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM393AD |
Texas Instruments |
Comparator ICs Dual Differential |
Data Sheet |
|
|
||||||||||||
|
LM393ADE4 |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
LM393ADGKR |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
LM393ADGKRG4 |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
LM393ADR |
Texas Instruments |
Comparator ICs Dual Diff A Grade |
Data Sheet |
|
|
||||||||||||
|
LM393ADRE4 |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
LM393AM |
Fairchild Semiconductor |
Comparator ICs Dual Comparator |
Data Sheet |
|
|
||||||||||||
|
LM393AM_Q |
Fairchild Semiconductor |
Comparator ICs Dual Comparator |
Data Sheet |
|
|
||||||||||||
