Product Summary
The D1170S25T is a fast diode which is produced by Infineon Technologies corporation. Its typical applications include DC power supplies, inverters, converters, choppers, ultrasonic systems, and freewheeling diodes. Some specifications of D1170S25T can be summarized as:(1)Package Type: DO-200AC; (2)Puck Size (h x dia.) in.: 1 x 3 inches; (3)Vrrm (volts): 2,500 Volts; (4)IF (rms) Amps: 3,360 Amps; (5)IF (avg) Amps: 1,170 Amps; (6)Ifsm Amps: 27,500 Amps; (7)I2T@50Hz (A2Sec): 3,780,000; (8)Vfm (volts): 2.62 Volts; (9)trr (nanoseconds): 5,000 NanoSeconds; (10)Junction Temp.: 257 Degrees F; (11)Mounting Force: 18~50 kN ; (12)Picture No.: EUPC_DIOD_DO-200AC; (13)H x W x D (in.): 1.02 x 2.95 x 2.95; (14)Net Weight:1 lb 4 oz.
Parametrics
D1170S25T absolute maximum ratings:(1)repetitive peak forward reverse voltage VRRM: 2000 V at Tvj = - 25°C...Tvj max ; (2)repetitive peak forward reverse voltage VRRM: 2500 V ; (3)non-repetitive peak reverse voltage VRSM: 2100 V at Tvj = + 25°C...Tvj max ; (4)non-repetitive peak reverse voltage VRSM: 2600 V; (5)RMS forward current IFRMSM: 3360 A; (6) mean forward current IFAVM: 1170 A at TC =85°C; (7)mean forward current IFAVM: 2140 A at TC =31°C; (8)surge foward current: IFSM =27500 A at Tvj = 25°C, tp = 10 ms; (9)surge foward current IFSM: 24000 A at Tvj = Tvj max, tp = 10 ms; (10)I2t-value: I2t: 3780000 A2s at Tvj = 25°C, tp = 10ms; (11)I2t-value: 2880000 A2s at Tvj = Tvj max, tp = 10ms.
Features
D1170S25T features:(1)Gehuse, siehe Anlagecase, see appendix: Seite 3, page 3; (2)Si-Element mit Druckkontakt Si-pellet with pressure contact: Durchmesser/diameter 51mm; (3)Anprekraft clamping force: F=18...50 kN; (4)Gewicht weight: G= 560 g typ. ; (5)Kriechstrecke creepage distance:30 mm; (6)Feuchteklasse humidity classification: C at DIN 40040 ; (7)Schwingfestigkeit vibration resistance:50 m/s2 at f = 50Hz.

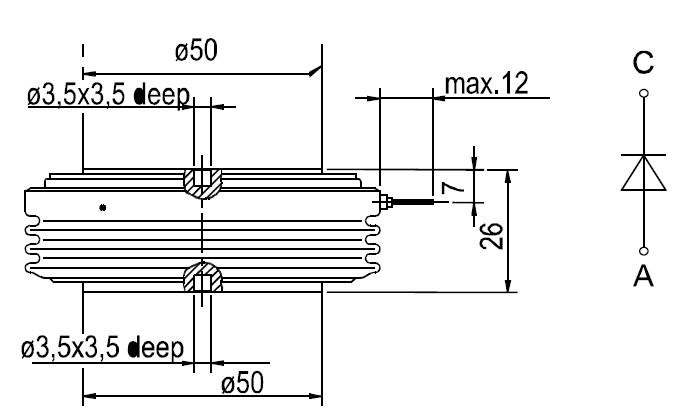

Diagrams
