Product Summary
The M29W040B90N6 is a 4 Mbit (512Kb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V) supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29W040B90N6 is fully backward compatible with the M29W040B90N6. The memory is divided into blocks that can be erased independently so it is possible to preserve valid data while old data is erased. Each block can be protected independently to prevent accidental Program or Erase commands from modifying the memory. Program and Erase commands are written to the Command Interface of the memory. An on-chip Program/Erase Controller simplifies the process of programming or erasing the memory by taking care of all of the special operations that are required to update the memory contents. The end of a program or erase operation can be detected and any error conditions identified. The command set required to control the memory is consistent with JEDEC standards.
Parametrics
M29W040B90N6 absolute maximum ratings: (1)Ambient Operating Temperature (Temperature Range Option 1): 0 to 70 ℃; (2)Ambient Operating Temperature (Temperature Range Option 6): -40 to 85 ℃; (3)TBIAS Temperature Under Bias: -50 to 125 ℃; (4)TSTG Storage Temperature: -65 to 150 ℃; (5)VIO Input or Output Voltage: -0.6 to 4 V; (6)VCC Supply Voltage: -0.6 to 4 V; (7)VID Identification Voltage: -0.6 to 13.5 V.
Features
M29W040B90N6 features: (1)single 2.7 to 3.6v supply voltage for program, erase and read operations; (2)access time: 55ns; (3)programming time; (4)8 uniform 64 kbytes memory blocks; (5)program/erase controller; (6)erase suspend and resume modes; (7)unlock bypass program command; (8)low power consumption; (9)100,000 program/erase cycles per block; (10)20 years data retention.

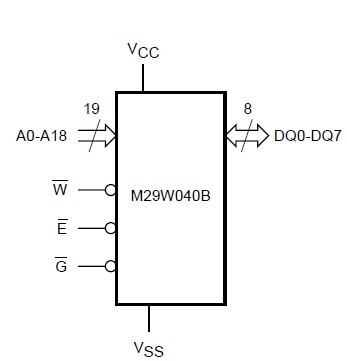

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

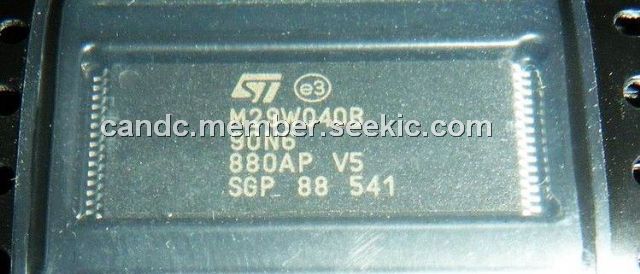

 M29W040B90N6 |
STMicroelectronics |
Flash 4M (512Kx8) 90ns |
Data Sheet |
Negotiable |
|
||||
|
M29W040B90N6T |
STMicroelectronics |
Flash 4M (512Kx8) 90ns |
Data Sheet |
Negotiable |
|
||||
