Product Summary
The 29LV800TE-70PFTN is a Flash Memory. It is organized as 1 M bytes of 8 bits each or 512 Kwords of 16 bits each. The 29LV800TE-70PFTN is offered in a 48-pin TSOP (1) , 48-pin CSOP and 48-ball FBGA package. These devices are designed to be programmed in a system with the standard system 3.0 V VCC supply. 12.0 V VPP and 5.0 V VCC are not required for write or erase operations. The 29LV800TE-70PFTN can also be reprogrammed in standard EPROM programmers.
Parametrics
29LV800TE-70PFTN absolute maximum ratings: (1)Storage Temperature Tstg: -55 to +125℃; (2)Ambient Temperature with Power Applied TA: -40 to +85℃; (3)Power Supply Voltage VCC: -0.5 to 5.5V.
Features
29LV800TE-70PFTN features: (1)0.23 m Process Technology; (2)Single 3.0 V Read, Program, and Erase; (3)Compatible with JEDEC-standard Commands; (4)Compatible with JEDEC-standard World-wide Pinouts; (5)Minimum 100,000 Program/Erase Cycles; (6)High Performance; (7)Sector Erase Architecture; (8)Boot Code Sector Architecture; (9)Sector Protection Set Function by Extended Sector Protection Command; (10)Fast Programming Function by Extended Command; (11)Temporary Sector Unprotection.

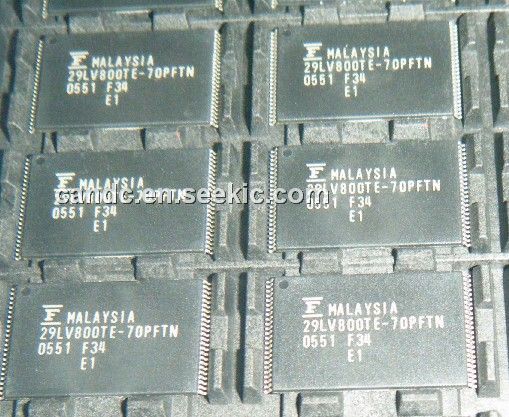

Diagrams
