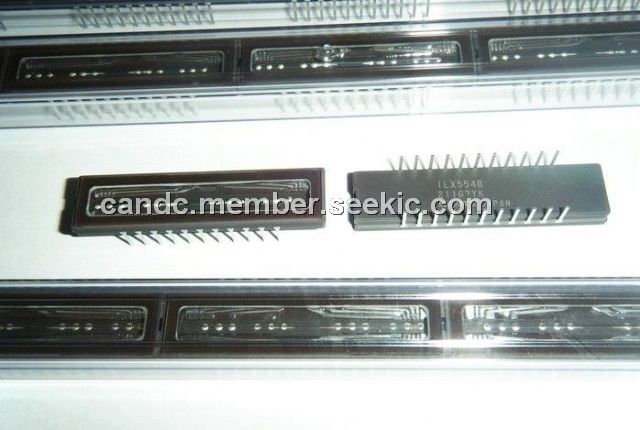

Product Summary

The ILX554B is a rectangular reduction type CCD linear image sensor designed for bar code POS hand scanner and optical measuring equipment use. A built-in timing generator and clock-drivers ensure single 5V power supply for easy use.

Parametrics

ILX554B absolute maximum ratings: (1)Supply voltage VDD: 6 V; (2)Operating temperature: -10 to +60 ℃; (3)Storage temperature: -30 to +80 ℃; (4)5V current consumption: 10mA.

Features

ILX554B features: (1)Number of effective pixels: 2048 pixels; (2)Pixel size: 14μm × 56μm (14μm pitch); (3)Single 5V power supply; (4)Ultra-high sensitivity; (5)Built-in timing generator and clock-drivers; (6)Built-in sample-and-hold circuit; (7)Maximum clock frequency: 2MHz.

Diagrams

ILX554B pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ILX554B
ILX554B

Other


Data Sheet

Negotiable
