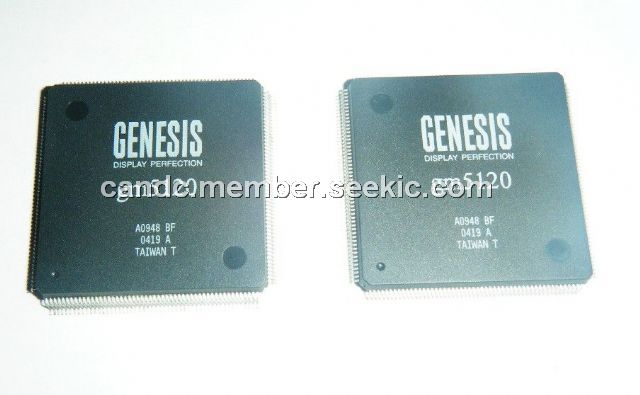

Product Summary
The GM5120 is a Liquid Crystal Display (LCD) monitor at XGA/SXGA resolution. It provides all key IC functions required for the highest quality LCD monitors. On-chip functions include a high-speed triple-ADC and PLL, Ultra-Reliable DVI TM receiver, a high quality zoom and shrink scaling engine, an on-screen display (OSD) controller, digital color controls and an on-chip microcontroller (OCM). With this level of integration, the GM5120 simplifies and reduces the cost of LCD monitors while maintaining a high-degree of flexibility and quality.
Parametrics
GM5120 absolute maximum ratings: (1)3.3V Supply Voltages VVDD_3.3: -0.3 to 3.6V; (2)2.5V Supply Voltages VVDD_2.5: -0.3 to 2.75V; (3)Input Voltage (5V tolerant inputs)VIN5Vtol: -0.3 to 5.5V; (4)Input Voltage (non 5V tolerant inputs)VIN: -0.3 to 3.6V; (5)Electrostatic Discharge VESD: ±2.0kV; (6)Latch-up ILA: ±100mA; (7)Ambient Operating Temperature TA: 0 to 70℃; (8)Storage Temperature TSTG: -40 to 125℃; (9)Operating Junction Temp TJ: 0 to 125℃.
Features
GM5120 features: (1)Zoom (from VGA)and shrink (from UXGA)scaling; (2)Integrated 8-bit triple-channel ADC / PLL; (3)Integrated Ultra-Reliable DVI 1.0-compliant receiver; (4)High-Bandwidth Digital Content Protection (HDCP); (5)Embedded microcontroller with parallel ROM interface; (6)On-chip versatile OSD engine; (7)All system clocks synthesized from a single external crystal; (8)Programmable gamma correction (CLUT); (9)RealColor controls provide sRGB compliance; (10)PWM back light intensity control; (11)5-Volt tolerant inputs; (12)Low EMI and power saving features.

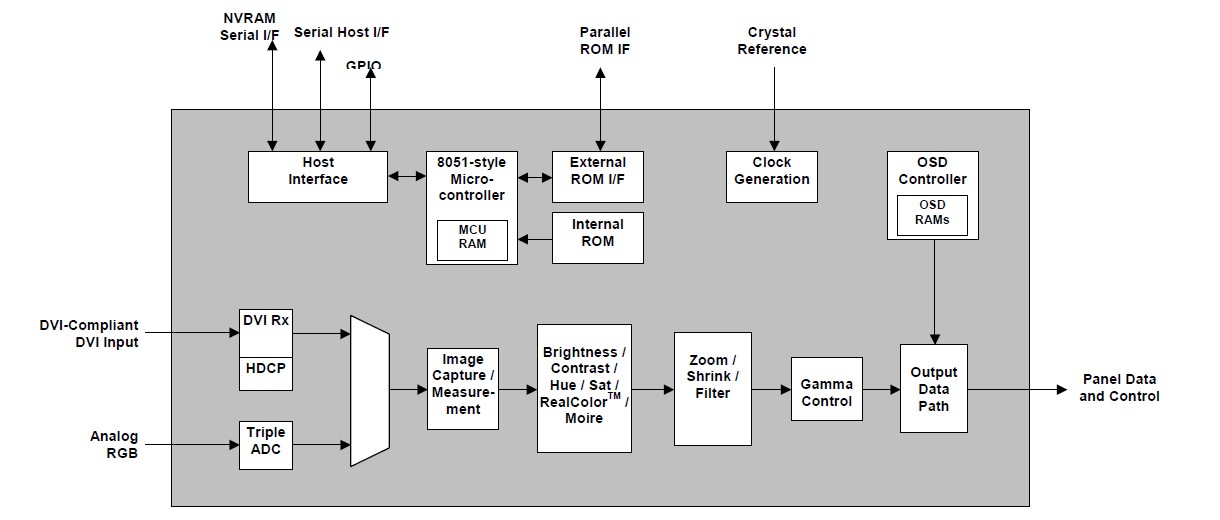

Diagrams
