Product Summary
The 74HC244PW is a high-speed Si-gate CMOS device and is a pin compatible with low power Schottky TTL (LSTTL). The 74HC244PW is specified in compliance with JEDEC standard no. 7A. The 74HC244PW is octal non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high impedance OFF-state. The 74HC244PW is identical to the “240” but has non-inverting outputs.
Parametrics
74HC244PW absolute maximum ratings: (1)VCC supply voltage: -0.5 to +7 V; (2)IIK input clamping current VI < -0.5 V or VI > VCC + 0.5 V: ±20 mA; (3)IOK output clamping current VO < -0.5 V or VO > VCC + 0.5 V: ±20 mA; (4)IO output current VO = -0.5 V to (VCC + 0.5 V): ±35 mA; (5)ICC quiescent supply current: 70 mA; (6)IGND ground current: 70 mA; (7)Tstg storage temperature: -65 to +150 ℃; (8)Ptot total power dissipation DIP20 package: 750 mW, SO20 package: 500 mW, SSOP20 package: 500 mW, TSSOP20 package: 500 mW, DHVQFN20 package: 500 mW.
Features
74HC244PW features: (1)Octal bus interface; (2)Non-inverting 3-state outputs; (3)Complies with JEDEC standard no. 7A; (4)ESD protection: u HBM EIA/JESD22-A114-C exceeds 2000 V, u MM EIA/JESD22-A115-A exceeds 200 V; (5)Multiple package options; (6)Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃.

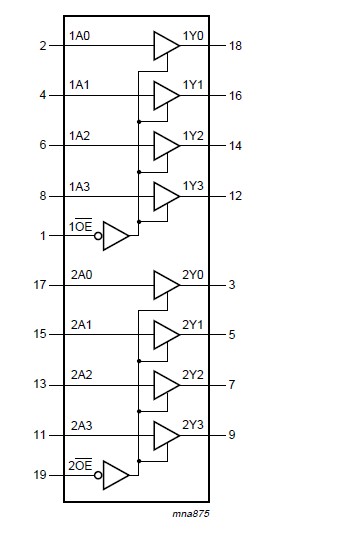

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC244PW,112 |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFFER 3-STATE |
Data Sheet |
|
|
||||||||||||
|
74HC244PW,118 |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFFER 3-STATE |
Data Sheet |
|
|
||||||||||||
